TJ-970 Automatic Stamping Machine

Max. paper size

940mm*550mm

Min. paper size

400mm*360mm

Max. foil stamping size

940mm*550mm

Inner chase size

970*640mm

Processed materials

80-600g/㎡

Max. Pressure

320T

Gripper Margin

8mm

Max. working speed

110 times/min

Total weight

7.5T

Max. unwinding diameter

φ1600mm

Max. rewinding diameter

φ1610mm

Dimension

6000*2300*2400mm

Inquire Now

Product information

Brief Introduction

TJ-970 Automatic stamping machine is a generation product of our company’s technological improvement and independent innovation. It is suitable for printing, coating rolls, automatic roll stamping. It is the machine which can make kinds of paper boxes, paper cups, icons, jam paper, handbag paper, plastic cover, PVC and other plastic products. The main machine adopts advanced technology; make a solid foundation for the whole part. The main electric adopts Innovance motor. The main machine is controlled by AC frequency converter, the main transmission system is with pneumatic clutch, ensures the stable of the machine, the machine is automatically tracked by the high definition color scale. Auto-location system by the servo motor, the machine is with auto-charging device, auto-deviation feeding.

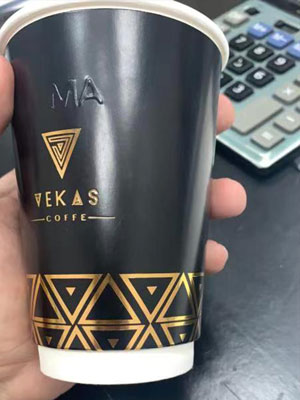

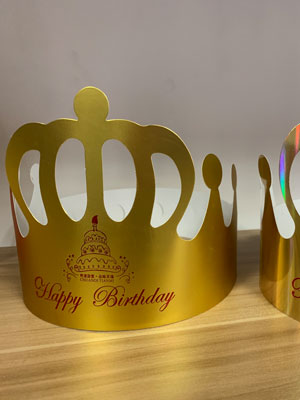

Sample

sample

Longitudinal stamping part	Horizontal stamping part
Min. foil width: 25mm	Min. foil width: 25mm Max. foil width: 600mm
Max. foil diameter: φ240mm	Max. foil diameter: φ200mm
Max. foil width: 1000mm	Max. foil width: 600mm
Max. Length of pull foil: 700mm	Max. length of pull foil: 1000mm
Stamping system and other operation.
Stamping temperature adjustable range: 0-200℃ Total power: 7.5KW Mpa Air compressor: 0.6-0.7Mpa

Features & Benefits

Perfect worm wheel and worm transmission system ensures the powerful and steady pressure and makes the cutting accurately while the machine runs with high speed, has features of low noise, smooth running and high cutting pressure. Main base frame, moving frame and top frame are all adopts high strength Ductile Cast Iron QT500-7, which has features of high tensile strength, anti-deformation and anti-fatigable.

Adopts forced lubrication system to ensure main driving oil supply regularly and reduce frication and prolong the machine life, machine will shut down for protection if oil pressure is low. The oil circuit adds a filter to clear the oil and a flow switch to monitor lacking oil.

The die-cutting force is provided by a 7.5KW inverter motor driver. It is not only power-saving, but also can realize the stepless speed adjustment, especially when coordinate with the extra large flywheel, which make the die-cutting force strong and steady, and the electricity can be further reduced. Pneumatic clutch brake: through adjust the air pressure to control the driving torque, low noise and high brake performance. The machine will shut down automatically if overload happened, response sensitive and fast.

accurate and fast to achieve die-cutting pressure adjustment. The pressure is automatic adjusted through the motor to control the four feet by HMI. It is very convenient and accurate.
