Bare Frame Style Full Automatic High Speed Slitting And Rewinding Machine
|
Model |
GW-1400G |
GW-1600G |
GW-1800G |
GW-2000G |
|
Max. diameter of unwinding |
1600mm |
1600mm |
1600mm |
1600mm |
|
Max. width of unwinding |
1400mm |
1600mm |
1800mm |
2000mm |
|
Min. width of slitting |
40mm |
40mm |
40mm |
40mm |
|
Max. diameter of rewinding |
1550mm |
1550mm |
1550mm |
1550mm |
|
Speed |
≤500m/min |
≤500m/min |
≤500m/min |
≤500m/min |
|
Total power |
56kw |
56kw |
56kw |
56kw |
|
Power supply |
380V/50HZ |
380V/50HZ |
380V/50HZ |
380V/50HZ |
|
Weight |
13000kg |
14000kg |
15000kg |
17000kg |
|
Overall dimension |
8500*3250*2700mm |
8500*3550*2700mm |
8500*3750*2700mm |
8500*4050*2700mm |
Product information
Performance And Characteristics
1. This machine use PLC controller, automatic taper tension, central surface rewinding.

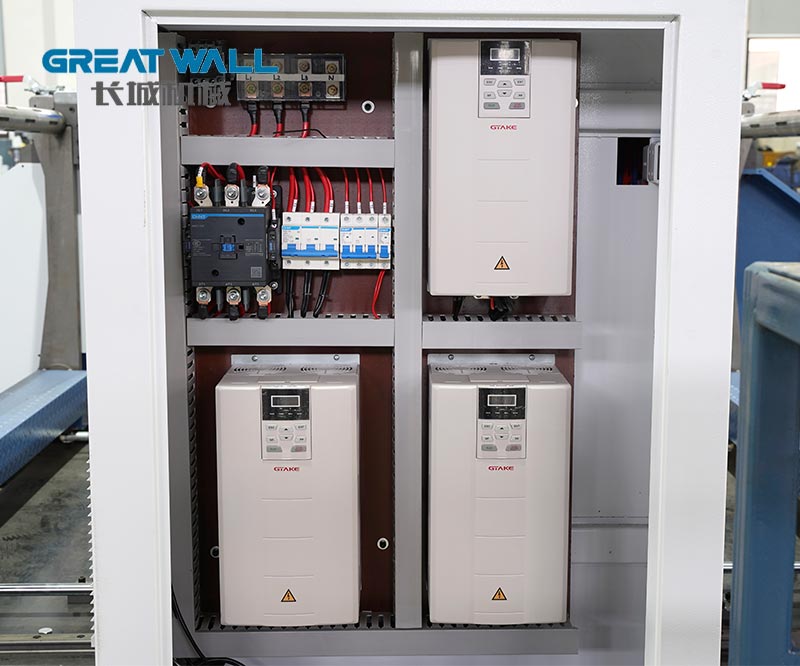

2. Frequency converter three motors servo control, keeping speed up and stable operation. It has the function of automatic counting meters, automatic alarm, etc.

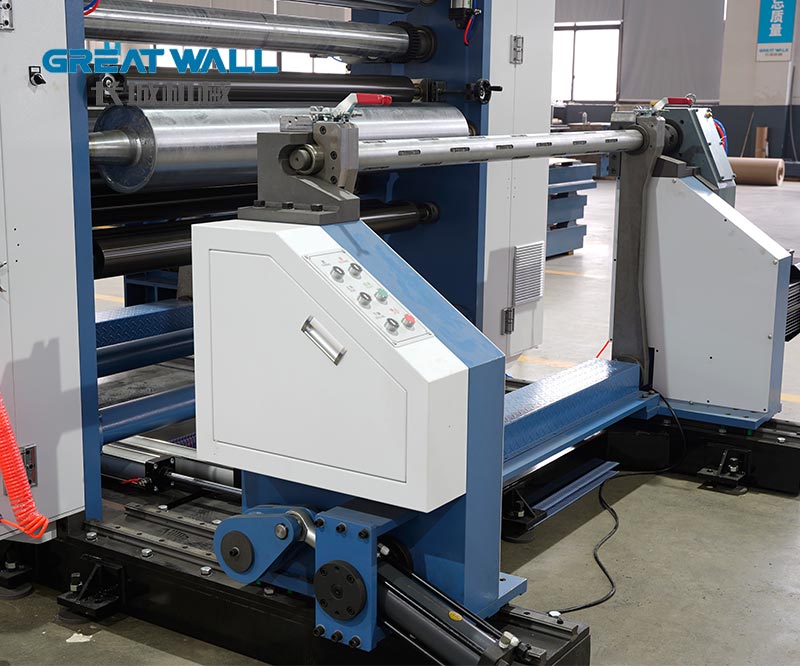

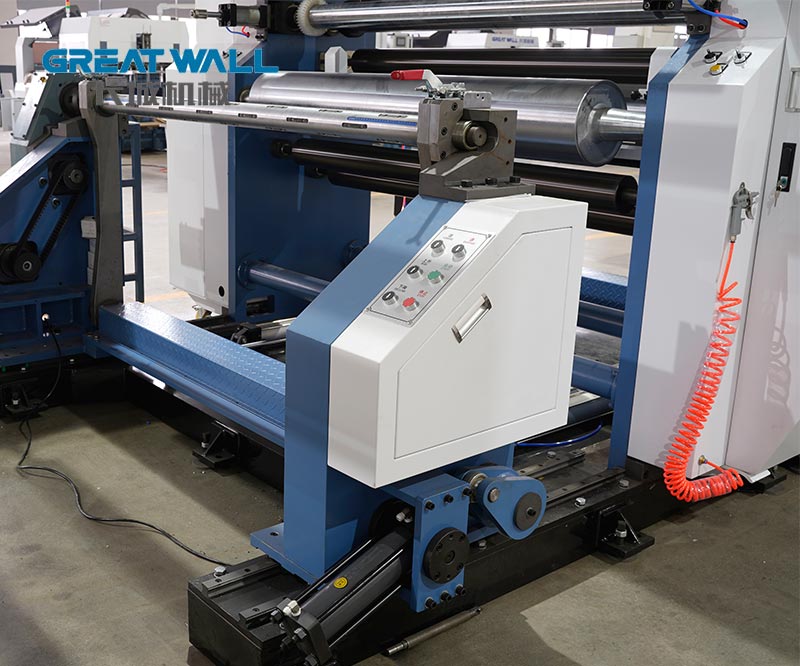

3. With A&B air expanding shaft structures for rewinding.
4. Adopt web edge automatic correction system, well slitting irregular edge roll material.
5. Equipped with automatic waste paper edge blowing out device.

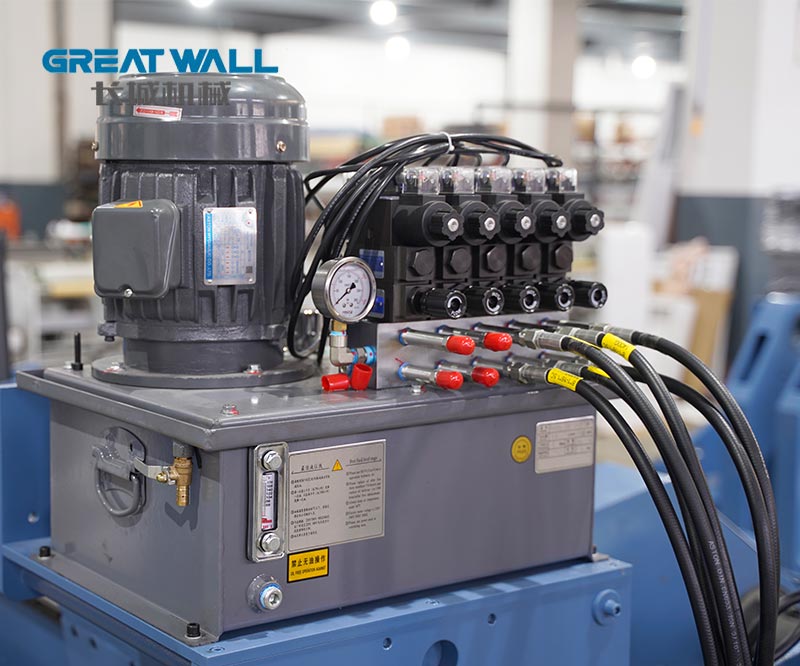

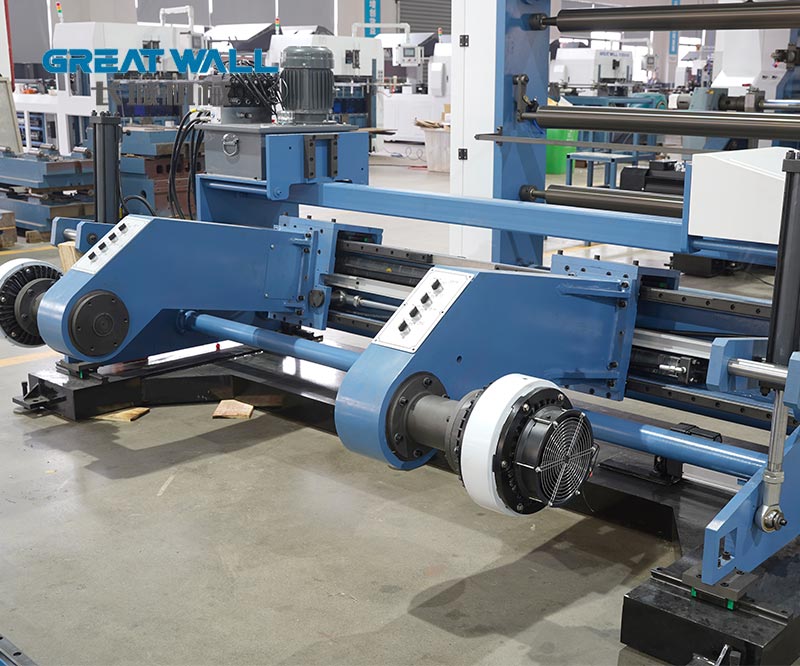

6. Automatic material loading by hydraulic system for unwinding.
