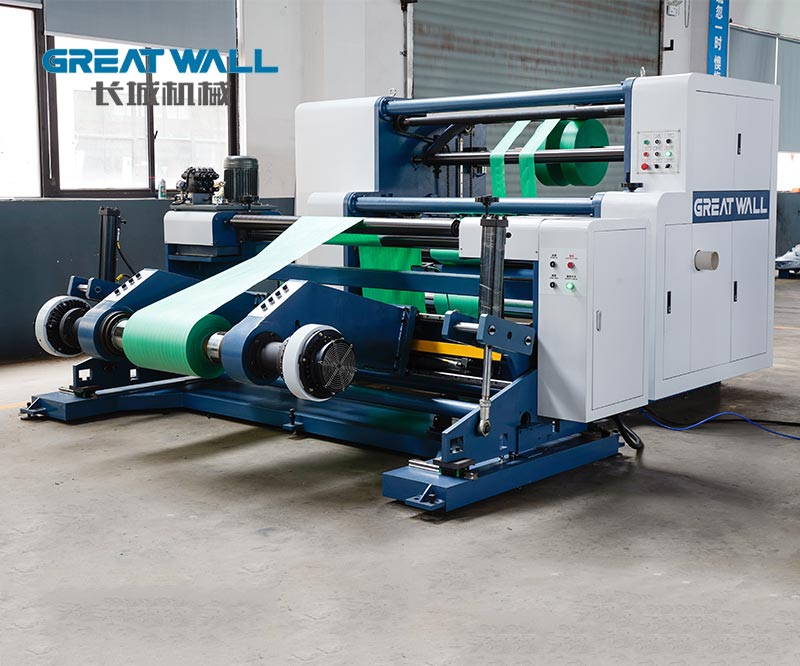

GW-A Series Slitting And Rewinding Machine
|
Model |
GW-1300A |
GW-1600A |
GW-1800A |
|
Max. width of the roll |
1300mm |
1600mm |
1800mm |
|
Max. diameter of unwinding |
1450mm |
1450mm |
1450mm |
|
Min. slitting width |
30mm |
30mm |
30mm |
|
Max. diameter of rewinding |
1000mm |
1000mm |
1000mm |
|
Speed |
≤450m/min |
≤450m/min |
≤450m/min |
|
Total power |
24kw |
26kw |
30kw |
|
Power supply |
380v/50hz |
380v/50hz |
380v/50hz |
|
Weight |
4000kg |
4500kg |
5500kg |
|
Overall dimension |
3300*3150*1930mm |
3300*3450*1930mm |
3300*3650*1930mm |
Product information
This machine is suitable for many kinds of jumbo roll material, such as adhesive stickers/pvc/pet/release paper/breathable film/pearlized Bopp.

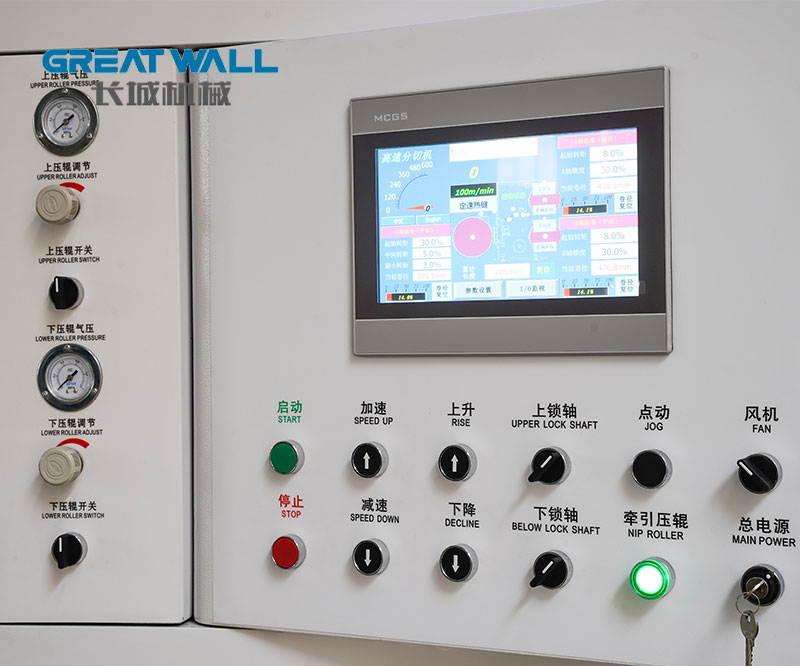

This machine adopts PLC(Siemens) servo motor control and automatic taper tension, central surface rewinding , frequency control of motor, run smoothly in acceleration,
It has the function of automatic counting meter, automatic alarm, etc.
Adopts A and B pneumatic edge correction adjustment system for unwinding, anomalistic materials will be easily slitted. Equipped with automatic waste film blowing device.
Automatic material loading by pneumatic, material with air.
